TRIO Monitormatrix
RME Loopback
Central Station
Central Station -20db

RightMark Audio Analyzer test


Testing chain: Vergleich RME vs. Central Station (+Trio)
Sampling mode: 32-bit, 44 kHz




Summary

TestTRIO MonitormatrixRME LoopbackCentral StationCentral Station -20db
Frequency response (from 40 Hz to 15 kHz), dB: +0.08, -0.57+0.01, -0.11+0.01, -0.11+0.01, -0.12
Noise level, dB (A): -96.6-112.4-112.4-96.9
Dynamic range, dB (A): 96.6112.2112.196.9
THD, %: 0.00090.00070.00070.0008
IMD + Noise, %: 0.00610.00110.00110.0041
Stereo crosstalk, dB: -71.4-111.0-111.2-93.1

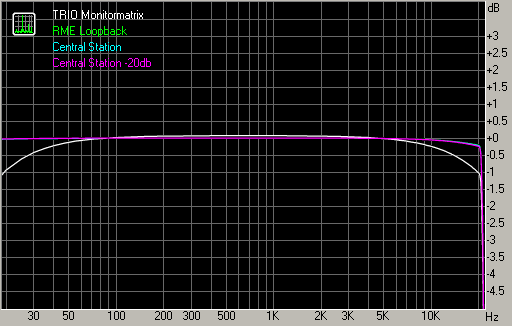

Frequency response

Spectrum graph

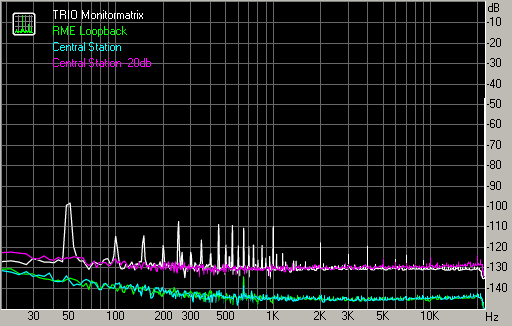

Noise level

Spectrum graph

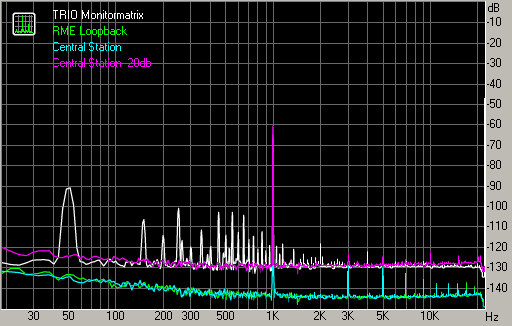

Dynamic range

Spectrum graph

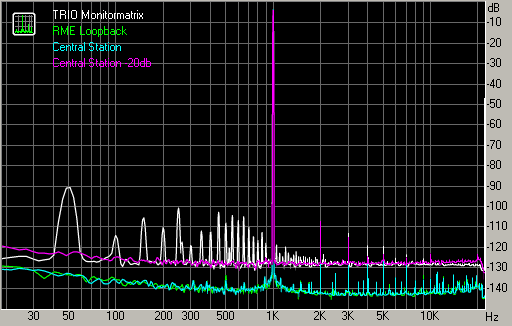

THD + Noise (at -3 dB FS)

Spectrum graph

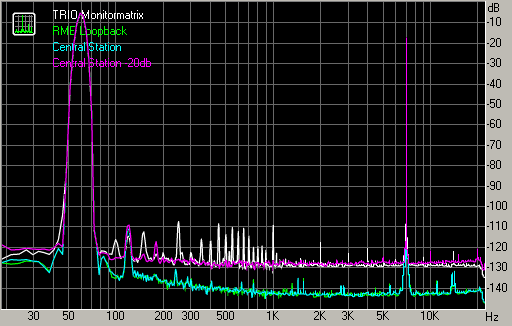

Intermodulation distortion

Spectrum graph

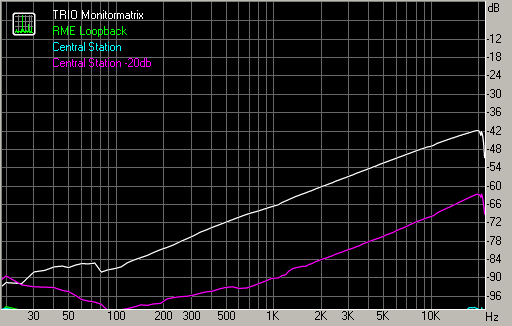

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.0
